Safety Light Curtain and Grid Muting

ULCT, ULVT, TLCT, TLVT, EU2K

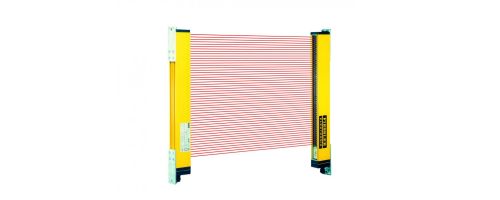

The safety system of the ULVT, ULCT, TLVT, TLCT and EU2K series of light curtains is based on the principle of interrupting the light beam by a finger, limb or person to prevent dangerous contact and avoid potentially fatal consequences. The complete set consists of two components - a transmitter and a receiver. These sets can be supplemented with mirrors that reflect and transmit the transmitted beams. The difference is the ULVT500/2R and ULVT1200/4R type apertures, where the basic set consists of a transmitter with a receiver and mirrors on the other side.

Thanks to the modular design, it is possible to choose the height of the protective field. The height of the protective fields of the screens range from 100 mm to 1900 mm. In each length it is possible to choose the resolution (14-30-100-200-300-400-500 mm) and thus determine the amount of beams. In total, the number of beams varies from 13 to 247, depending on the length of the protective field. However, each resolution changes the property of the optimal length of the aperture. The maximum beam range for these apertures is up to 60 m. According to the design length, the reaction time of the aperture at the shortest distance also varies.

• LED signalling
• numeric display
• DIP switch
• own built-in evaluation unit
• 2 types of protective housings
• Connection via plug-in terminal block or M12/M8 connector
• also for explosive environments

Technical data:

• reaction time 4-20 ms
• range up to 60 m
• aperture height 100-1900 mm
• resolution level 14-30-100-200-300-400 and 500 mm
• number of beams 13-247
• operating temperature -30 - +55°C
• security level Cat. 2, PL c, SIL 1 - Cat. 4, PL e, SIL 3
• degree of protection IP 65-69K

Certification:

• EN 61496-1
• IEC 61496-2
• EN ISO 13849-1

Quick overview:

• ULVT set - range up to 60 m, aperture height 100 - 1900 mm, size 40x60 mm, resolution 14 - 500 mm, basic response time 4.3 ms, Cat 4, PL e, SIL 3
• ULCT set - range up to 5 m, aperture height 100 - 1500 mm, compact size 25x35 mm, resolution 14 - 30 mm, response time 4 - 20 ms, Cat. 4, PL e, SIL 3
• TLVT set - range up to 60 m, aperture height 100 - 1900 mm, size 40x60 mm, resolution 14 - 500 mm, basic response 4.3 ms, Cat. 2, PL c, SIL 1
• TLCT set - range up to 5 m, aperture height 100 - 1500 mm, compact size 25x35 mm, resolution 14 - 30 mm, response time 4 - 20 ms, Cat. 2, PL c, SIL 1
• EU2K set - range up to 30 m (with laser transmitter 100 m), size 102x75x25 mm, 1 beam, response time 12 ms, Cat. 4
• ULVT500/2R set - range up to 8 m (with 15 m extension), 500 mm aperture height, 40x60 mm size, 500 mm resolution, 2 beams (1 beam mirrored), 6 ms response, Cat. 4, PL e, SIL 3
• ULVT1200/4R set - range up to 10 m, aperture height 1200 mm, size 40x90 mm, 4 beams (2 beams mirrored), response 6 ms, Cat. 4, PL e, SIL 3
