Flexible and special safety solutions

Solutions for area protection using area and 3D-directed systems and interlocks for special applications

Individual safety technology at the highest level, flexible and for special environments can be found at contra Safety.Automation. The safety and automation specialist offers innovations and further developments of already proven solutions for safeguarding machines, such as the SENTIR mat safety mat - which now boasts new features and can also be customized on request.

"In addition to tried-and-tested protective systems for industrial production and the manufacturing industry, we also offer solutions that safeguard areas under unusual conditions," says Manfred Petsch, Managing Director.

These include LOUIS, a safety switch for sterile environments and the even more individually programmable 3D Safety Radar safety system in the new "SBV system" version.

  • Safety contact mat SENTIR mat
  • Hygienic Gard Lock LOUIS
  • 3D Safety Radar

Safety contact mat SENTIR mat - a safe choice

The safety contact mats have surface switching sensors and provide area protection in industry and production. They act as a safety device on robots, injection molding machines, automatic CNC processing machines, etc. The safety contact mats can be adapted to customer requirements in a variety of shapes, sizes and materials.

SENTIR mat is characterized by the following properties:

  • Max. Sizes per mat 2,350 x 1,350 mm
  • Up to 10 mats in a row (max. 10m²) on one switching device
  • Safety level PLd
  • Temperature range -10/+55 °C
  • Protection class IP 65 or IP 67

Further information at: https://contra.webofficeserver.info/products/safety/taktile-sensorik-matte-pumpe-leiste

Hygienic switch (Hygienic Guard Lock LOUIS)

LOUIS is a hygienic guard lock for environments where frequent washing procedures or the use of corrosive agents are necessary to contain bacteria.  It features RFID technology, which provides millions of different coding combinations and is classified as highly coded according to ISO 14119. It also features the 3-A Sanitary Standards Inc. design

  • Stainless steel housing
  • Highly coded RFID safety switch
  • Locking force of 7,500 N
  • Compact housing
  • Temperature range -25/+125 °C
  • Protection class IP 65 and IP 67
  • Safety level PLe

Further information at: https://contra.webofficeserver.info/rfid-hygienic-switch

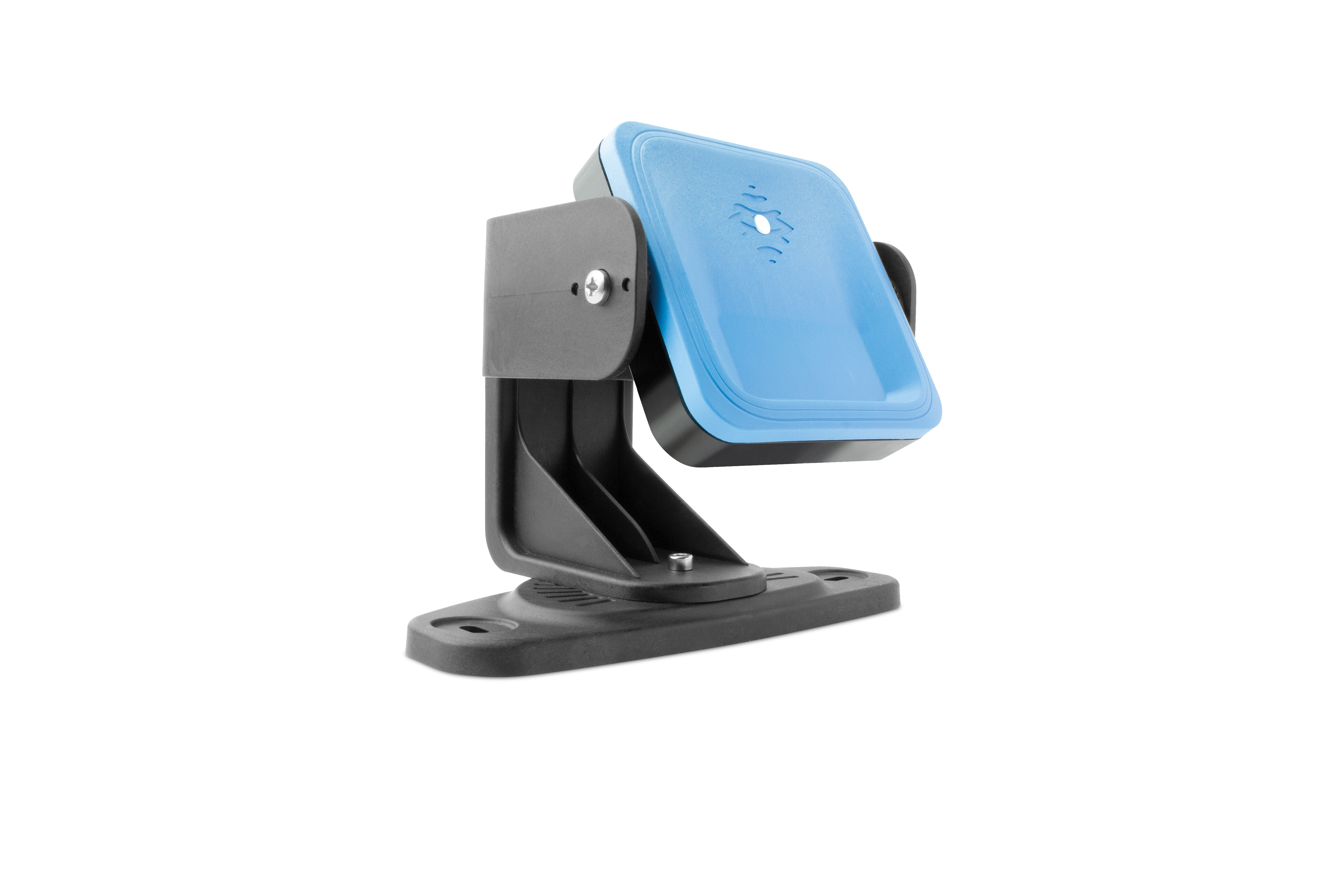

3D Safety Radar - the features of the new SBV system at a glance

  • Protective field: up to 9m depth (warning range and shutdown range)
  • Various configuration options (configurable sensitivities, warning levels, danger zones)
  • Function: muting of individual sensors
  • Detection range: horizontal: 10° to 100° (in 10° increments), vertical: 20°
  • Series connection: up to 6 sensors
  • Plug connection 2 x M12 5 pin
  • Operating temperature -30 to +60°C
  • Protection class IP 67
  • Safety level Pld, Cat3

Further information at: https://contra.webofficeserver.info/produkte/safety/radarsystem
