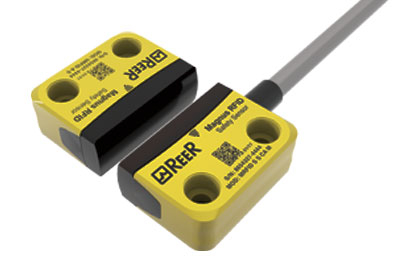

R-SAFE RFID sensors RFID sensors at the highest level for all machine safety applications
- The new R-SAFE RFID sensors have a wide range of applications thanks to their compact and versatile design. The various design and technology options and compatibility make the sensor versatile.
- The RFID sensors can be coded in three ways to suit all applications.
- The RFID technology used achieves safety levels of up to PL e/SIL 3, even when connected in series.
- The sensors can therefore be integrated into existing environments, offering a cost-effective solution for retrofitting and upgrading machines.
Series connections
- R-SAFE RFID makes it possible to call up the individual status without having to wire the status output of each sensor individually.
Cost efficiency
- The wear-free technology enables a longer product service life.
- Status LED and diagnostic output.
- Full mechanical compatibility with the Magnus RFID and Magnus MG "S" series.
- Can be used as a single device or in series.
Safety
- Tamper protection in accordance with EN ISO 14119, the highest in its class.
- Screw covers prevent easy removal.
- Series connection up to PL e/SIL 3.
- Protection class IP67 and IP69K for use in harsh environments.
Versatility
- Three mounting options.
- M12 plug, M12 plug with pigtail or cable.
- 3 different coding levels.
- Extension cable for series connection.
Further technical details can be found here: https://contra.at/sites/default/files/produkte/sicherheitsschalter-zuhaltung-verriegelung-rfid/dateien/234/r-safe-rfid-en.pdf Click here to see the sensors: https://contra.at/safety/sicherheitsschalter-zuhaltung-verriegelung-rfid/rfid-sicherheitssensoren
